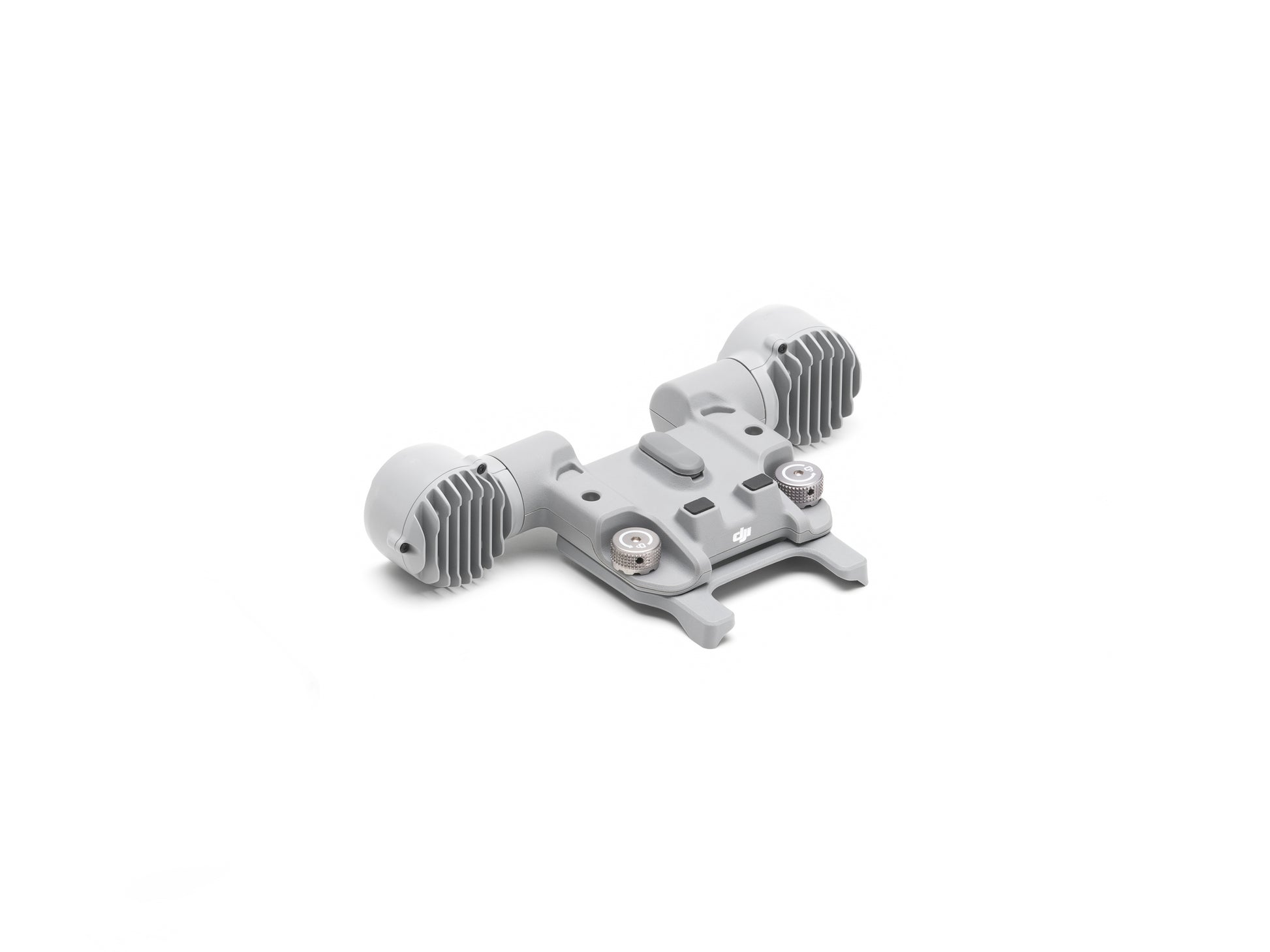

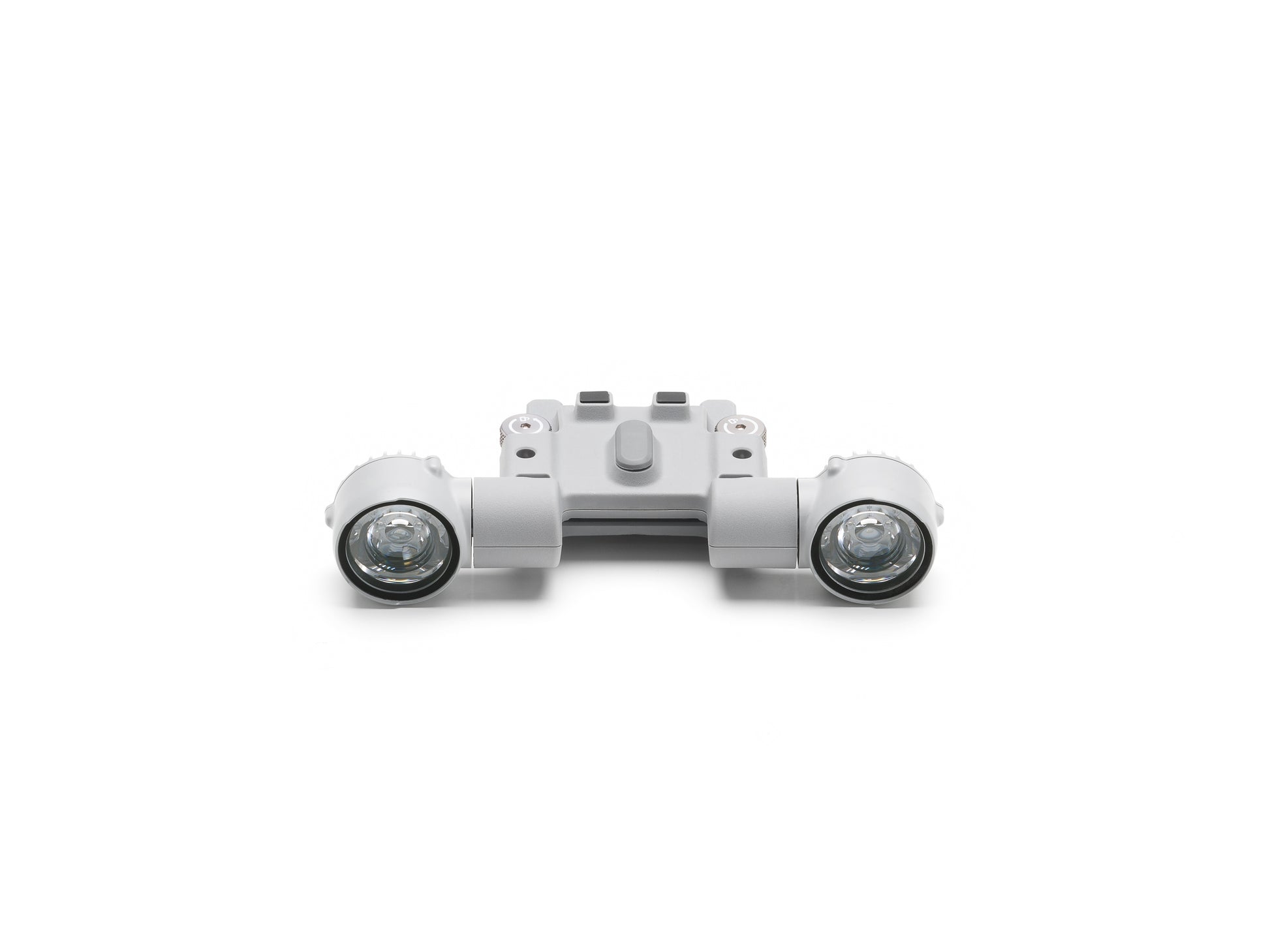

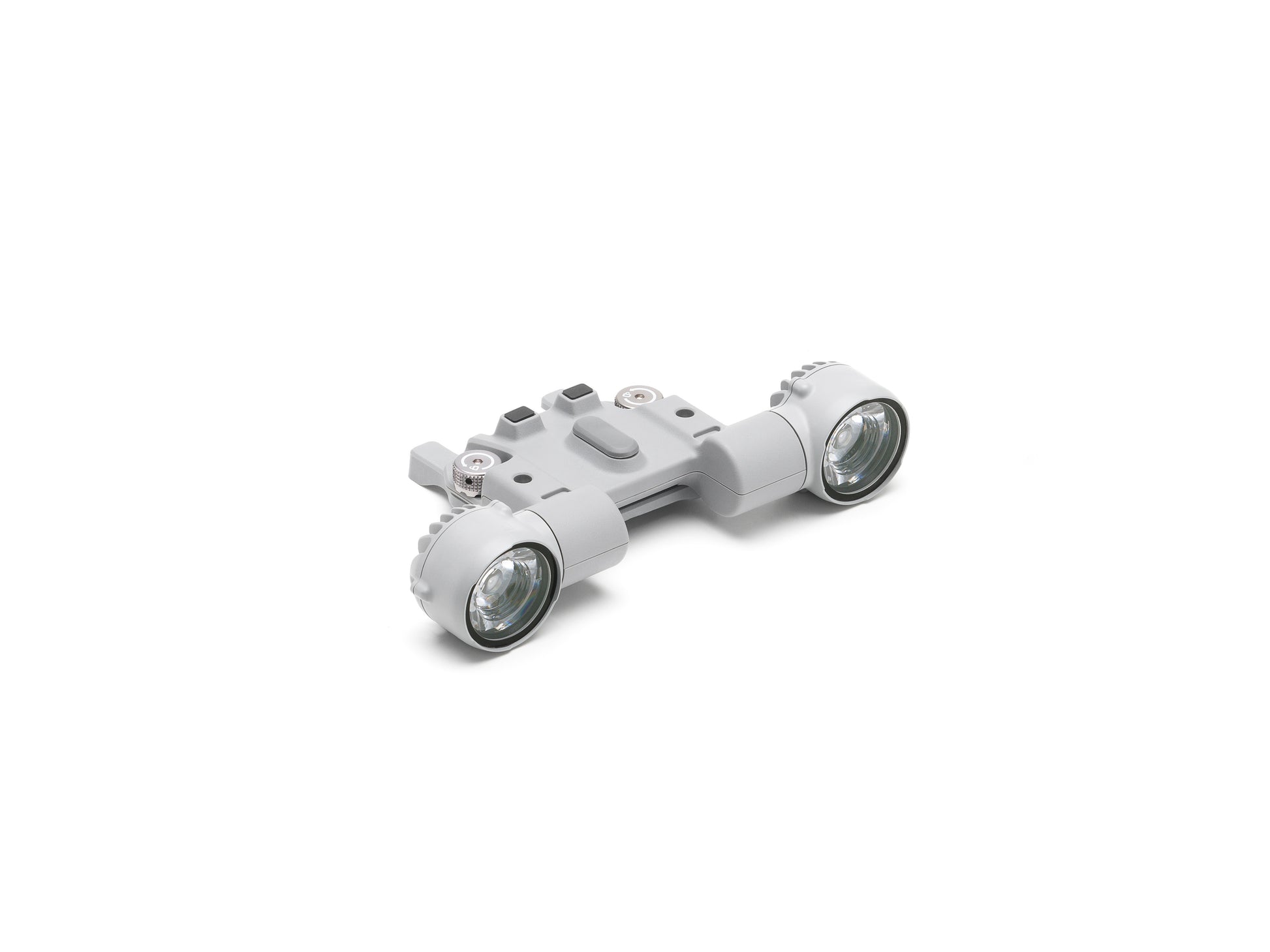

DJI AL1 Spotlight For Matrice 4 Series

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. Additionally, it can intelligently link with the gimbal, following the camera's movements to ensure the illuminated area matches the camera's view. It also offers a wide FOV lighting mode, which can illuminate a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.

Highlights:
The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.

Specification:
Weight: 91 g (excluding bracket)
Dimensions: 79 × 164 × 28 mm (L × W × H, excluding bracket)
Maximum Power: 32 W
Illuminance: 4.3 ± 0.2 lux @ 100 meters, 17 ± 0.2 lux @ 50 meters*
Effective Illumination Angle: 23° (10% relative illuminance)
Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode) / 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)
Modes: Always-on and strobe
Gimbal Mechanical Range (Tilt): -140° to 50°
Gimbal Controllable Range (Tilt): -90° to 35°
Max Control Speed (Tilt): 120°/s
Gimbal Alignment Accuracy: ±0.1°
Operating Temperature: -20° to 50°C (-4° to 122°F)
Mounting Method: Quick-release, hand-tightened screws
Protection Rating: IP55 (with Matrice 4D Series)
